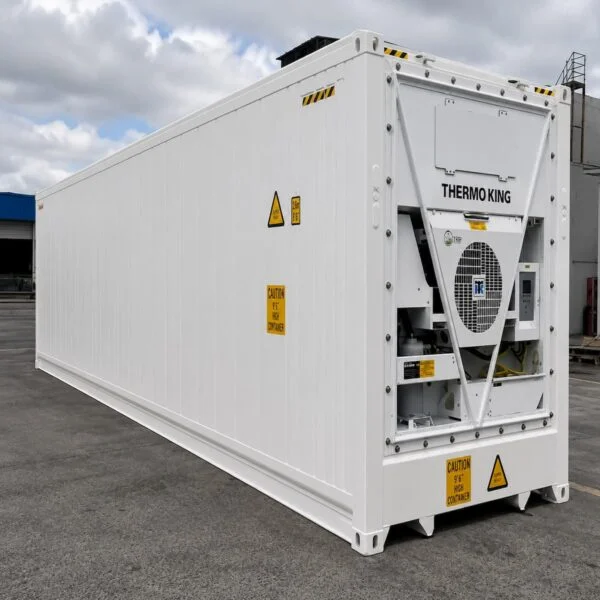

40ft High Cube One-Trip Reefer Container — Thermo King Magnum Plus (Ref 2906)

40ft High Cube One-Trip Reefer Container — Thermo King Magnum Plus (Ref 2906)
A new 40ft one-trip HC reefer container built to ISO Series 1 dimensional standards and factory-fitted with a Thermo King Magnum Plus refrigeration unit. Setpoint range from -40°C to +30°C covers frozen goods, chilled produce, pharmaceutical cold chain, and food-grade storage applications. The unit ships with a marine-grade stainless steel exterior, food-grade stainless steel interior walls, and full personnel safety provisions — suited to commercial cold chain operators, food processors, and any application where a reefer is entered by personnel during operation.

Refrigeration Specifications
Refrigeration unit Thermo King Magnum Plus
Compressor type Digital scroll with aluminized coating
Temperature range -40°C to +30°C setpoint
Refrigerant R452A (low-GWP HFO blend)
Power supply 460V / 3-phase, 30A circuit
AUS grid compatibility Voltage transformer required for 415V 3-phase supply
Power cable ~15m (50ft) included
Container Body & Interior
Container type New 40ft HC ISO reefer, one-trip
Outer cladding Marine-grade stainless steel (MGSS)
Interior walls Stainless steel — food grade
Insulation Polyurethane throughout walls, roof, and floor
Floor Aluminium flat floor
Floor drains 4 × automatic self-closing drains (2 front, 2 rear)
Interior liner Aluminium scuff liner
Door curtain Heavy-duty sliding thermal curtain
Safety door Openable from inside — for manned cold storage
Interior lighting Interior light with dedicated switch
Panic alarm Exterior siren and strobe light
Dimensions
External
Length 12.19 m (40′ 0″)
Width 2.44 m (8′ 0″)
Height 2.90 m (9′ 6″) — High Cube
Internal
Length 11.58 m (38′ 0″)
Width 2.29 m (7′ 6″)
Height 2.59 m (8′ 6″) — after insulation panels
Door Opening
Width 2.29 m (7′ 6″)
Height 2.54 m (8′ 4″)
Weight
Tare weight 4,499 kg (9,920 lbs)
Payload capacity 29,502 kg (65,040 lbs)
Key Features
One-trip condition — new container body, first cargo voyage only
Thermo King Magnum Plus refrigeration unit
-40°C to +30°C setpoint — frozen, chilled, and ambient capability
Food-grade stainless steel interior walls
Marine-grade stainless steel exterior cladding — corrosion resistant in coastal and industrial environments
Polyurethane insulation throughout — low thermal transfer and running costs
4 automatic self-closing floor drains — washdown-friendly
Panic alarm with exterior siren and strobe — personnel safety
Safety door openable from inside — required for manned cold storage operations
R452A refrigerant — low global warming potential HFO blend
~15m (50ft) power cable included
Built to ISO 668 Series 1 dimensional standards
Suitable For
Commercial cold chain storage and distribution
Food processing and food manufacturing facilities
Pharmaceutical and temperature-sensitive product storage
Remote site refrigerated storage — mining, construction, agricultural operations
Export of perishable goods in active international shipping
Temporary cold storage during facility fit-outs or peak demand periods
Warranty
Supplied with a manufacturer’s warranty on both the container structure and the Thermo King refrigeration unit. Contact for current warranty terms, coverage period, and claim process before order confirmation.

Browse the full refrigerated container range for used reefer, blast freezer, and lower-spec cold storage configurations.

Condition
One-Trip (New) — HC Reefer with Thermo King Magnum Plus

Delivery Information
Flat-Rate Delivery $450 Australia-wide, any postcode
Lead Time 5–7 business days from order confirmation
Dispatch Location Lowood QLD 4311
Delivery Method Tilt-tray or side-loader truck
Access Requirement Level ground, minimum 6m overhead clearance, 15m straight run for tilt-tray delivery
