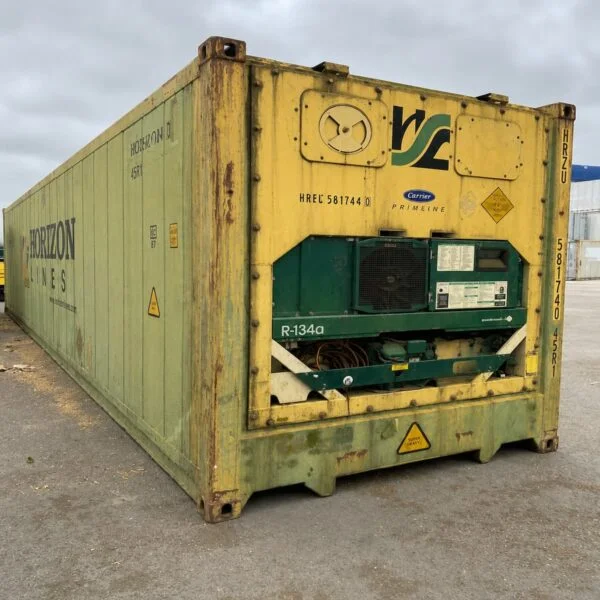

40ft Used High Cube Reefer Container – R134a – Cargo Worthy

This 40ft used high cube reefer container carries a valid CSC badge, R134a refrigerant, and a 380V/32A power connection — a fully operational cargo worthy refrigerated unit with 76.4 m³ of temperature-controlled internal volume. The high cube profile delivers 2,698mm of internal clearance, giving 305mm more headroom than a standard 40ft reefer for hanging meat rails, tall pharmaceutical racking, and full-height pallet stacks. Furthermore, the -25°C to +25°C temperature range covers full freezer to chiller applications in a single unit. In addition, the ISO 45R1 type code confirms port acceptance across all Australian and international shipping networks.

40ft Used High Cube Reefer Container Specifications
External Dimensions
Dimension Millimetres Feet / Inches
Length 12,192 mm 40′ 0″
Width 2,438 mm 8′ 0″
Height 2,896 mm 9′ 6″
Internal Dimensions
Dimension Millimetres Feet / Inches
Length 12,032 mm 39′ 5″
Width 2,352 mm 7′ 8″
Height 2,698 mm 8′ 10″
Door Opening
Dimension Millimetres
Width 2,340 mm
Height 2,585 mm
Weight & Capacity
Spec Value
Internal Volume 76.4 m³
Empty Weight 4,550 kg
Max Additional Load 29,450 kg
Total Weight 34,000 kg
Refrigeration & Power
Spec Value
Temperature Range -25°C to +25°C
Refrigerant R134a
Power Connection 380V / 32A
Operating Voltage CEE 50Hz
Power Draw 6–10 kW/h
Noise Output 63–78 dB at 1m distance
Certification & Classification
Spec Value
Condition Cargo Worthy (Used)
CSC Badge Valid
ISO Type Code 45R1
ISO Group Code 45RT
Why This 40ft Used High Cube Reefer Container Suits Commercial Cold Chain
A 40ft used high cube reefer container with R134a refrigerant and a valid CSC badge covers cold chain requirements that a standard 40ft reefer physically can’t. The 2,698mm internal height accommodates hanging meat rails, tall pharmaceutical racking, and stacked pallet configurations that a standard profile reefer at 2,393mm won’t clear. As a result, abattoirs, seafood processors, and pharmaceutical cold chain operators who need floor-to-rail clearance alongside floor-level storage get both in the same unit. Moreover, the cargo worthy grade confirms this unit is CSC-certified for active intermodal shipping — it moves through ports, onto vessels, and across road and rail networks without restriction.

The R134a refrigerant system operates on standard 380V/32A three-phase supply — available at most Australian food processing facilities, cold storage sites, and commercial properties without infrastructure upgrades. Furthermore, the 6–10 kW/h power draw is a manageable electrical load for most site boards. In addition, the 63–78 dB noise output at 1m distance is within standard industrial site noise compliance ranges for most Australian states.

Key Features
Cargo worthy — valid CSC badge, ISO 45R1 certified
High cube profile — 9’6″ external, 8’10” internal height
76.4 m³ internal volume — maximum 40ft reefer capacity
-25°C to +25°C range — full freezer to chiller in one unit
R134a refrigerant — clean, efficient operation
380V / 32A power connection — standard three-phase supply
6–10 kW/h power draw — manageable site electrical load
29,450 kg max additional load — full commercial payload capacity
Suits hanging meat rails and tall pharmaceutical racking
Browse Refrigerated Containers
Additionally, 20ft refrigerated containers and non-operational reefer units are available for static cold storage applications at lower price points. Browse our full range of refrigerated containers to compare sizes, refrigerant types, and configurations in stock.

This container meets ISO 668 Series 1 freight container standards. Therefore, it suits active refrigerated freight movements across Australian road, rail, and sea transport networks.

Enquire About This 40ft Used High Cube Reefer Container
Available for delivery Australia-wide from Lowood QLD. Reply with your delivery postcode and power supply configuration for a final quote.

Condition
Cargo Worthy (Used) — Certified for active international shipping.

Delivery Information
Flat-Rate Delivery $450 Australia-wide, any postcode
Lead Time 5–7 business days from order confirmation
Dispatch Location Lowood QLD 4311
Delivery Method Tilt-tray or side-loader truck
Access Requirement Level ground, minimum 6m overhead clearance, 15m straight run for tilt-tray delivery
